Status QUAD: StQ 50 KIT , cubical quad 3 and 4 elements 50 Mhz, Kit version for antenne HF
3 StQ 50 Kit 199,00 € (VAT 22% included)
4 StQ 50 Kit 235,00 € (VAT 22% included)

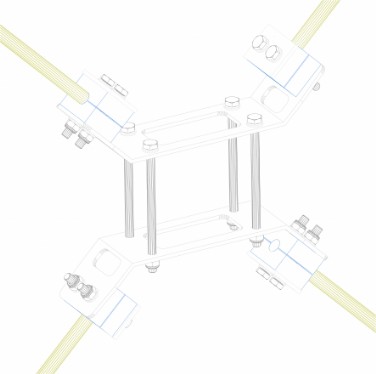

The kit Status Quad can be installed on the square boom and side Included from 60 mm to 80 mm (2" 23/64 to 3" 9/64). The brackets are made in stainless steel, can be installed easily. You can add the kit on Status Quad antennas, but also in any other type of antennas.
3 StQ 50 Kit
Table EZNEC simulation, gain and F / B in free space
Table EZNEC simulation, gain and F / B in free space
and real space to a wavelength from the ground
4 StQ 50 Kit
Table EZNEC simulation, gain and F / B in free space
Table EZNEC simulation, gain and F / B in free space
and real space to a wavelength from the ground

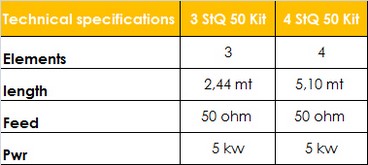

Technical specifications
