Select your language Status Quad production for 6 mt e VHF
| Models | n° of elements/Band | Boom length (meter / ft) | |
6 mt | 2 mt | ||
| 3 | 2,44 / 8.00 | ||
| 4 | 5,10 / 16.73 | ||
| 5 StQ-Y 50 Quagy | 5 | 5,2 / 17.06 | |
| 6 StQ-Y 50 Quagy | 6 | 7,90 / 25.91 | |
| 8 StQ-Y 50 Quagy | 8 | coming soon | |
| 6 StQ 144 | 6 | 2,14 / 7.02 | |
| 8 StQ 144 | 8 | 2,89 / 9.48 | |
| 12 StQ 144 | 12 | 4,38 / 14.37 | |
| 3/6 StQ 50/144 | 3 | 6 | 2,44 / 8.00 |
| 4/8 StQ 50/144 | 4 | 8 | 5,10 / 16.73 |
| 4/12 StQ 50/144 | 4 | 12 | 5,10 / 16.73 |
| 3 StQ 50 KIT | 3 | 2,44 / 8.00 | |
| 4 StQ 50 KIT | 4 | 5,10 / 16.73 | |
Status Quad antennas for 6mt and VHF, are always made with the same care for details, such as the HF models. We looked for solutions that would make the 'antenna mechanically reliable and easy to assemble.
Boom accessory

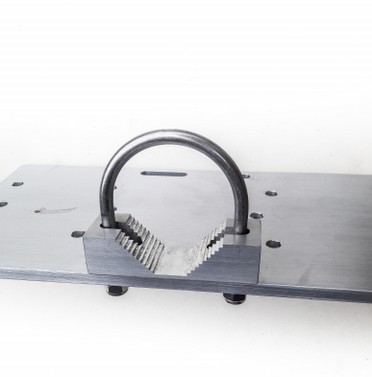

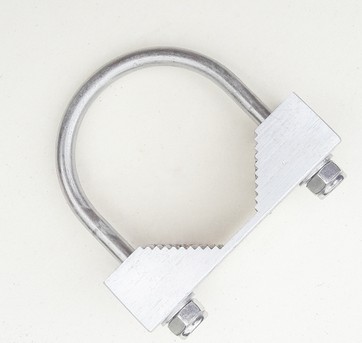

The boom/mast coupler is entirely in aluminum cut and drilled with numerical control machines. Housing boom dug in the plate so as to prevent movement. Aluminum U-bolts to tighten must to 40 to 65 mm (1" 9/16 to 2" 35/64) . Boom made from aluminum square profile 50x50mm ( 1" 61/64 x 1" 61/64 ) thickness 2 mm - 5/64 ft.
The boom/mast coupler is entirely in aluminum cut and drilled with numerical control machines. Housing boom dug in the plate so as to prevent movement. Aluminum U-bolts to tighten must to 40 to 65 mm (1" 9/16 to 2" 35/64) . Boom made from aluminum square profile 50x50mm ( 1" 61/64 x 1" 61/64 ) thickness 2 mm - 5/64 ft.

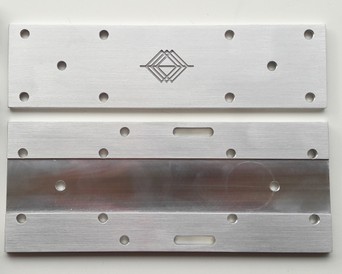

Boom plate quad VHF e 6 mt standard boom 50x50 mm

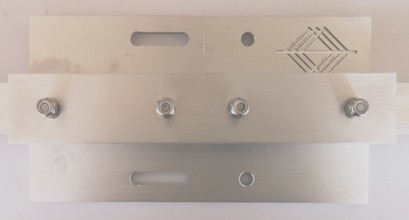

Boom plate quad VHF series L version boom 30x30 mm
Antenna elements
The elements are made of fiberglass-round 10 mm - 25/64ft diameter, the conductor is connected to the elements through nocks, designed and made by Status Quad.

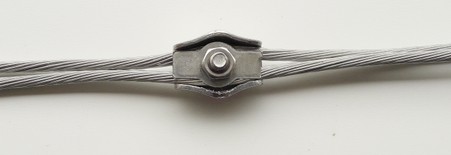

Wire

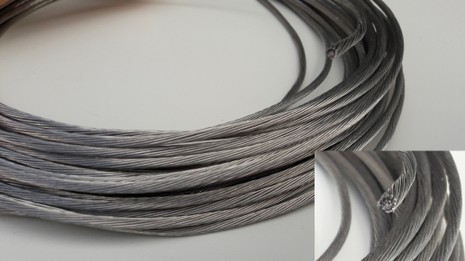

We use for the loop an alluminium rope, 2 mm - 6 mq
