MATERIALS
Follow us also on         Select your language

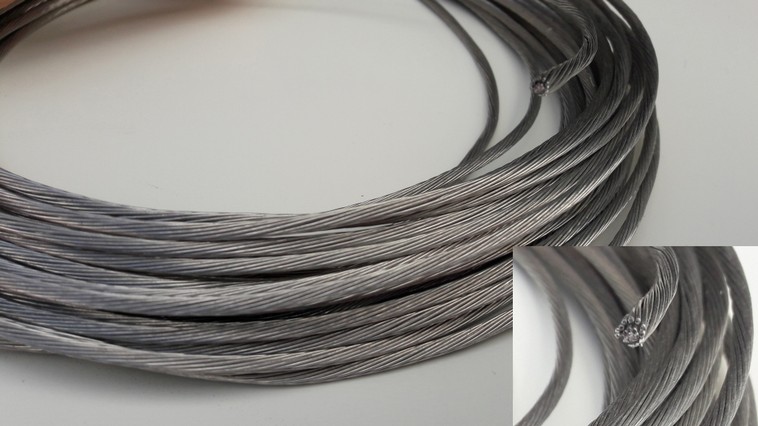

ALUMINIUM BRAID

For the conductor we used something new in the field of production of QUAD antennas: an aluminum braid, designed and manufactured specifically for this application. The braid is made of  30 strand 0.514 mm - 1/64 ft, special aluminium alloy.
We get in this way the best conductivity to less weight (only 16.57 kg/ km ) And this is reflected on the total weight of the quad.

Features:
Structure: 30x0.514mm (1/64 ft)
Wires nominal cross-section: 6 mm²
Strand diameter: 3.10 mm
Wire tensile strength: 90-140 MPa
Nominal Weight: 16.57 Kg / Km
