PRODUCTS > ANTENNAS > 6MT VHF

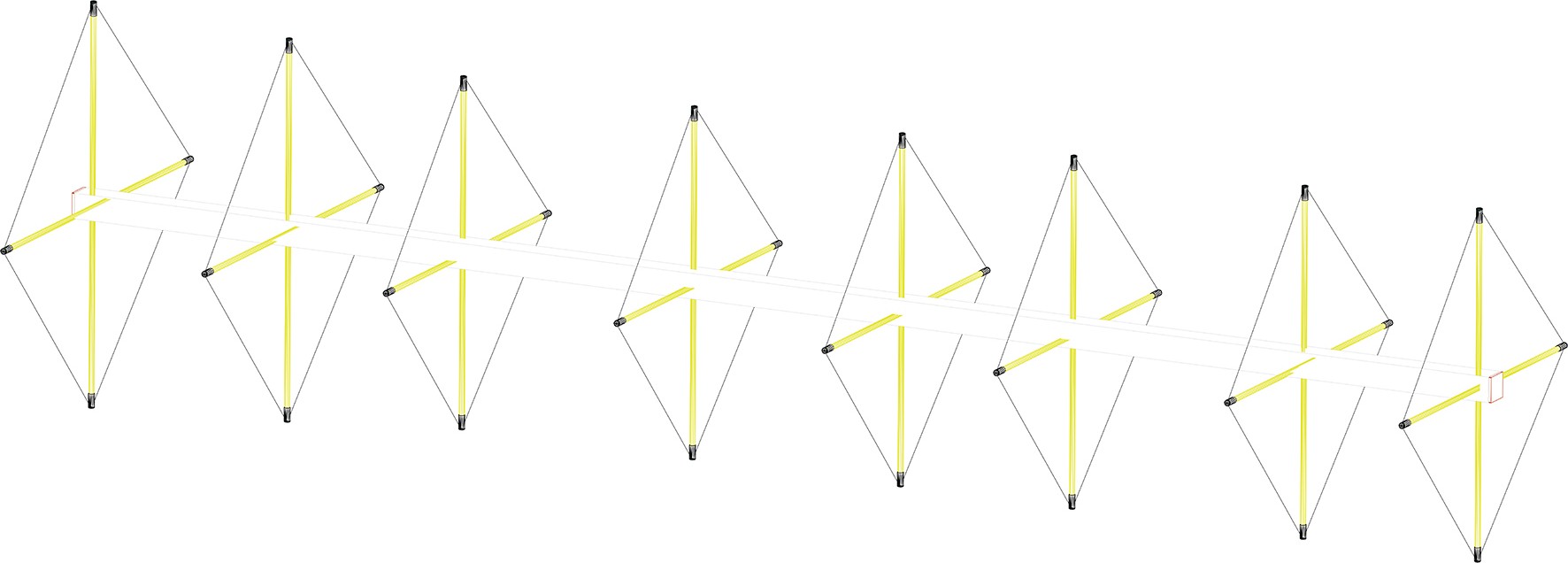

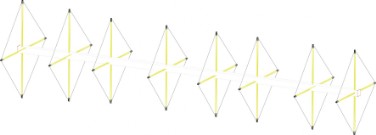

Status QUAD: 8 StQ 144, cubical quad 8 elements 144 Mhz
8 StQ 144       260,00(VAT 22% included)
8 StQ 144 L    230,00 (VAT 22% included)


Table EZNEC simulation, gain and F / B in free space
and real space to a wavelength from the ground

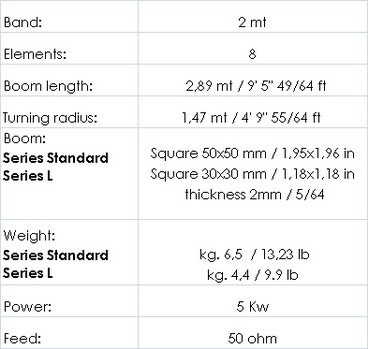

Technical specifications

*Feed: the power supply can vary according to the type of installation

Download :

Differences between quad  "Standard" and "L" series

The differences between the two quad series are:
- boom / mast connection plate
- Braid connection to the VTR rods that make up the diagonals of the individual elements
- boom size

Plate "Series L"                                        Plate "Series Standard"


Braided connection "L Series"       Braided connection "Standard Series"


Square Boom 30 x 30 mm "L Series"              Square Boom 50 x 50 mm "Standard Series"
